You are here: Home > Select Products > Parts > Elite Gate Operator Parts > Elite Miracle Parts
Sort By:
Page of 1
0-Miracle 1 arm
Product Price: $1,344.00

miracle 1 arm
Elite MIRACLE-ONE Arm only

No longer available suggest replacing with LA500 System
A solar adp DC solar power adapter
Product Price: $107.16
A solar adp
Dc solar power adapter
ABT12 single replacement battery 12 volt 7ah
Product Price: $47.63

Single Replacement Battery 12 volt 7ah for dc backup controllers and miracle operators (Note: Miracle system requires 2 batteries)
battery includes harnesses as shown

Can use part number np-712 for lower cost Yuasa brand replacement battery
ABTMIR plastic rack & 2 batteries
Product Price: $399.98

Plastic rack and 2 Batteries (FOR batteries only see a-bt-12 **  2 required)
APOW3 transformer 24 vac ( now CA energy compliant 34volt) direct replacement
Product Price: $24.41

Transformer Plug in 24 vac now california energy compliant 34volt direct replacement
Battery Replacement Yuasa 12v 7ah
Product Price: $20.99

Yuasa-NP7-12 Single Replacement Battery 12 volt 7ah for dc backup controllers and miracle and Liftmaster LA400,la412,la500 operators
(Note: Miracle and LA series operators requires 2 batteries)
These are replacement batteries and do not include harnesses.

See abt12 if harnesses are desired
Elite APRS House Alarm Proximity switch
House Alarm Proximity switch to provide contacts when gate is closed that can be tied into your existing house alarm system.  Requires OMNIEXB board sold separately
k33-51206-315 RADIO RECEIVER G535-315ELITE
Product Price: $39.09

k33-51206-315 RADIO RECEIVER G535-315ELITE
Liftmaster 312hm coax receiver 315 frequency
Product Price: $50.98

Liftmaster 312hm
LiftMaster Receiver 315 frequency coax receiver.
Compatible with with Gaplm,Gailm, Dailm, WKP keypads and other LiftMaster wireless intercom products.
312HM Programming Instructions (click here)
Liftmaster 412HM coax receiver 390 frequency
Liftmaster 412HM
Liftmaster Receiver 390 frequency coax receiver.
412HM Programming Instructions (click here)
Liftmaster 95LM 24VAC Transformer.
Liftmaster Star 450 receiver 450 capacity 315 mhz
Product Price: $125.99

star 450-315 mhz
Liftmaster Star 450 receiver 450 capacity 315 mhz.
Replaces the old Star 250 receiver, which is no longer available.
Click here for programming instructions.
Liftmaster Star 450 receiver 450 capacity 390 mhz
Product Price: $234.74
Star 450-390mhz
LiftMaster Star 450 receiver 450 capacity 390 mhz.
Replaced old Star 250 receiver which is no longer available.
Click here for programming instructions.
Liftmaster Star 450 receiver mounting box
Product Price: $34.50
Star 450 receiver mounting box
Liftmaster Star 450 receiver mounting box.
Receiver sold separately.
Liftmaster Star1000 receiver with Security+ 2.0
Star1000 receive
Liftmaster Star1000 receiver with Security+ 2.0

Suggested replacement for discontinued Sentex Autokey systems
Use with any of the New Liftmaster security 2.0 remotes
You can use this along side your existing system to allow both remotes to work at the same time.
Does not include ability to print out transactions.
Loop Detector Plug in Socket
Product Price: $9.44
DIN Rail mountable 11 pin socket base for
                                 use with our loop detectors
Loop Detector Wire Harness
Product Price: $9.87
Wire harness 11 pins/wires  36" in length 20 awg (ul) mtw or awm 600 volt
Q029 limit switch K23-50099
Product Price: $6.22

Limit Switch (sold individually)
Q162 fuse 1.5 amp K35-50185
Product Price: $2.00

Fuse 1.5
Q222 control board (single operator) K-001A5868
Product Price: $491.86

Control Board (single operator)
Q223 control board (master/slave) K001A5869
Product Price: $448.39

Control Board (master/slave)
Q224 power harness (master/slave) K94-50235 **NO LONGER AVAILABLE**
Product Price: $13.52
Power Harness (master/slave) **NO LONGER AVAILABLE**
Q226 power harness (single operator) K94-50237
Product Price: $18.60
Power Harness (Single Operator)
Q230 Mounting brackets for Miracle and LA500 (K77-50240)
Product Price: $68.41
Steel Bracket Mounting Plates (2) For Elite Miracle and LA500 Operators
Q231 radio & accessory harness K94-50241
Product Price: $21.20
Radio and Accessory Harness
Q232 bottom washer & nut (for traveler carriage bolt) K77-50336
Product Price: $2.94
Bottom Washer and nut(for traveler carriage bolt)
Q233 Miracle rear mounting bolt
Product Price: $7.49
Bolt, Bushing, nut (Fits rear mount of operator)
Q234 bracket/rod K75-50338
Product Price: $11.57

Q239 limit switch harness
Product Price: $62.61

Limit Switch harness(wires and 4 limit switches)
Q240 MAU maglock relay
Product Price: $37.34
Q240 MAU
Maglock/Solenoid relay adapter
Q242 alarm harness **NO LONGER AVAILABLE**
Product Price: $8.39
Alarm Harness
Q243 fuse 8 amp Miracle 1 (K35-50246)
Product Price: $2.00

8 amp fuse miracle 1
Q257 replacement lock and 2 keys **NO LONGER AVAILABLE**
Product Price: $19.02

Replacement lock and 2 keys(operators made post 3/14/99)
Q257-key Elite release key only for Miracle (operators post 3/14/99)
Product Price: $10.49

Q257-key only
Elite miracle release key  (operators post 3/14/99)
Q258 fuse 2 amp Miracle 1 (K35-50255)
Product Price: $3.17
2 amp fuse miracle 1
Q259 fuse 3 amp Miracle M/S [K35-50256]
Product Price: $5.06
3 amp fuse miracle m/s
Q260 fuse 15 amp Miracle M/S (K35-50257)
Product Price: $2.99
15 amp fuse Miracle m/s
Q262 harness-motor (operator cord) K70-51063
Product Price: $21.17
Harness-Motor(operator cord) 6ft long
Q300 traveler carriage K75-50341
Product Price: $83.34

Traveler Carriage
Q301 arm cover set K75-50265M
Product Price: $143.52

Arm Cover set(top and bottom aluminum)
Q302 Miracle end caps K75-50266
Product Price: $75.05

Arm End Caps (set)
Q303 arm cover gasket set NLA see Q301
Product Price: $21.18
No Longer available use Q301 complete arm cover set

Arm Cover gasket set 2 pcs
Q310 Miracle 1 surge protection (K74-50271)
Product Price: $192.37

Miracle 1 Surge Protection
Q311 Miracle M/S surge protection K74-50329
Product Price: $257.89

Miracle m/s Surge Protection
Q404 Omni siren
Product Price: $15.17
UL Audio Alarm
Wire 6 conductor miracle wiring 40'
Product Price: $36.74
Wire 6 conductor miracle wiring
Wire 6 conductor wire used for master/slave connections of Elite Miracle systems 40 ft length

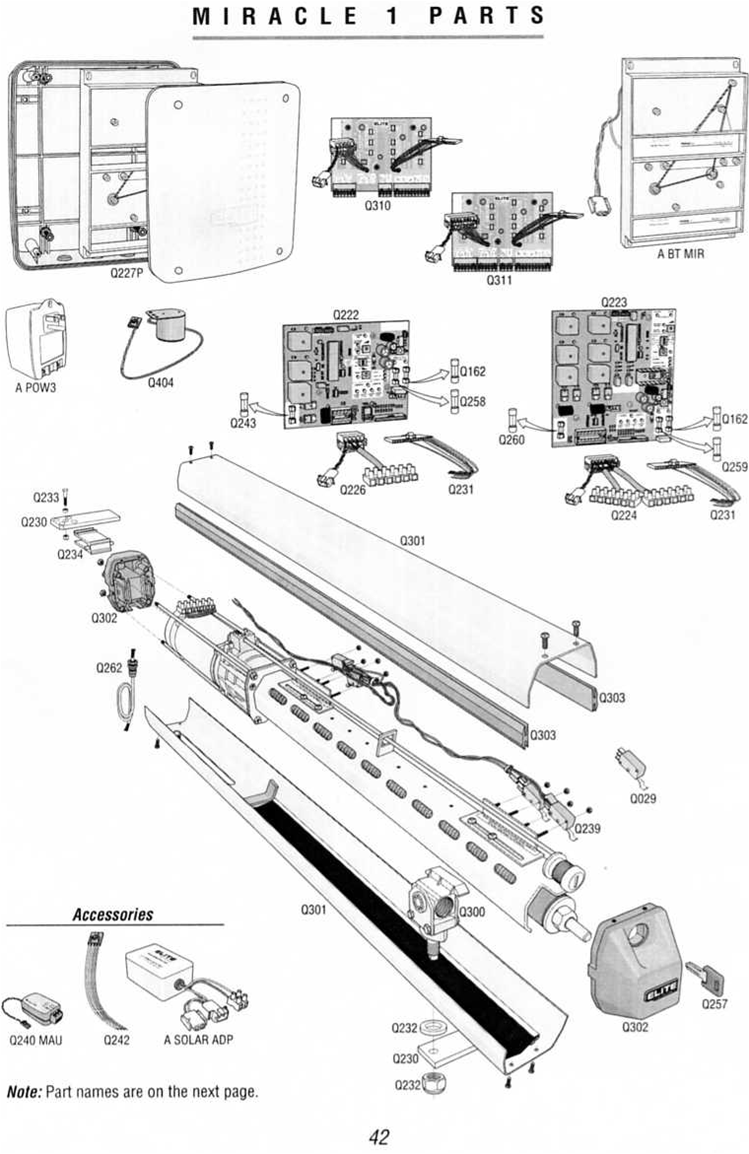

If you have an Elite Miracle and need parts you have come to the right place. We stock all of the major replacement parts for the Miracle swing gate operator. We have a Miracle parts breakdown that you shows you an exploded breakdown view you can clearly identify the parts you need and order it online from our store. This has been one of the best gate operators on the market for several years, we can help you keep it running even longer.
